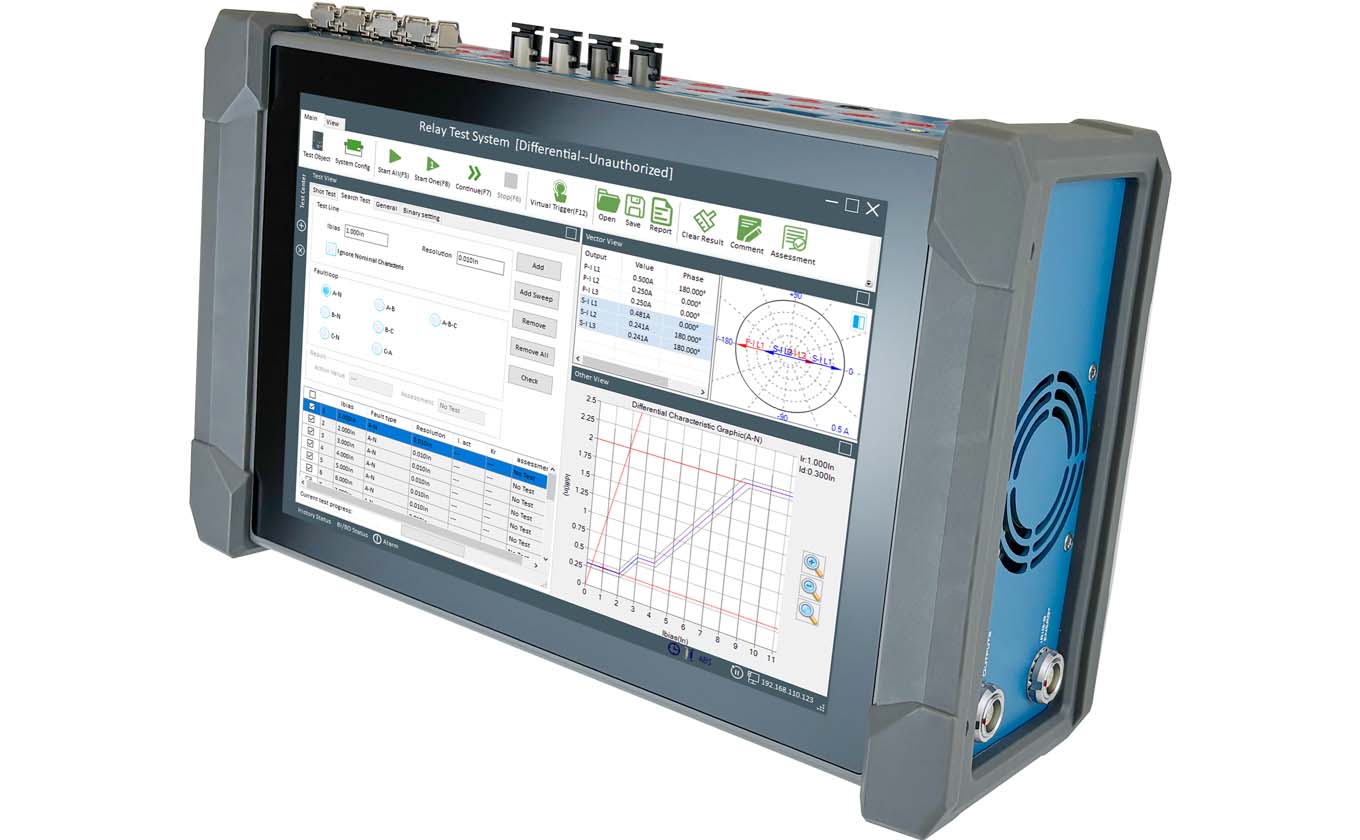

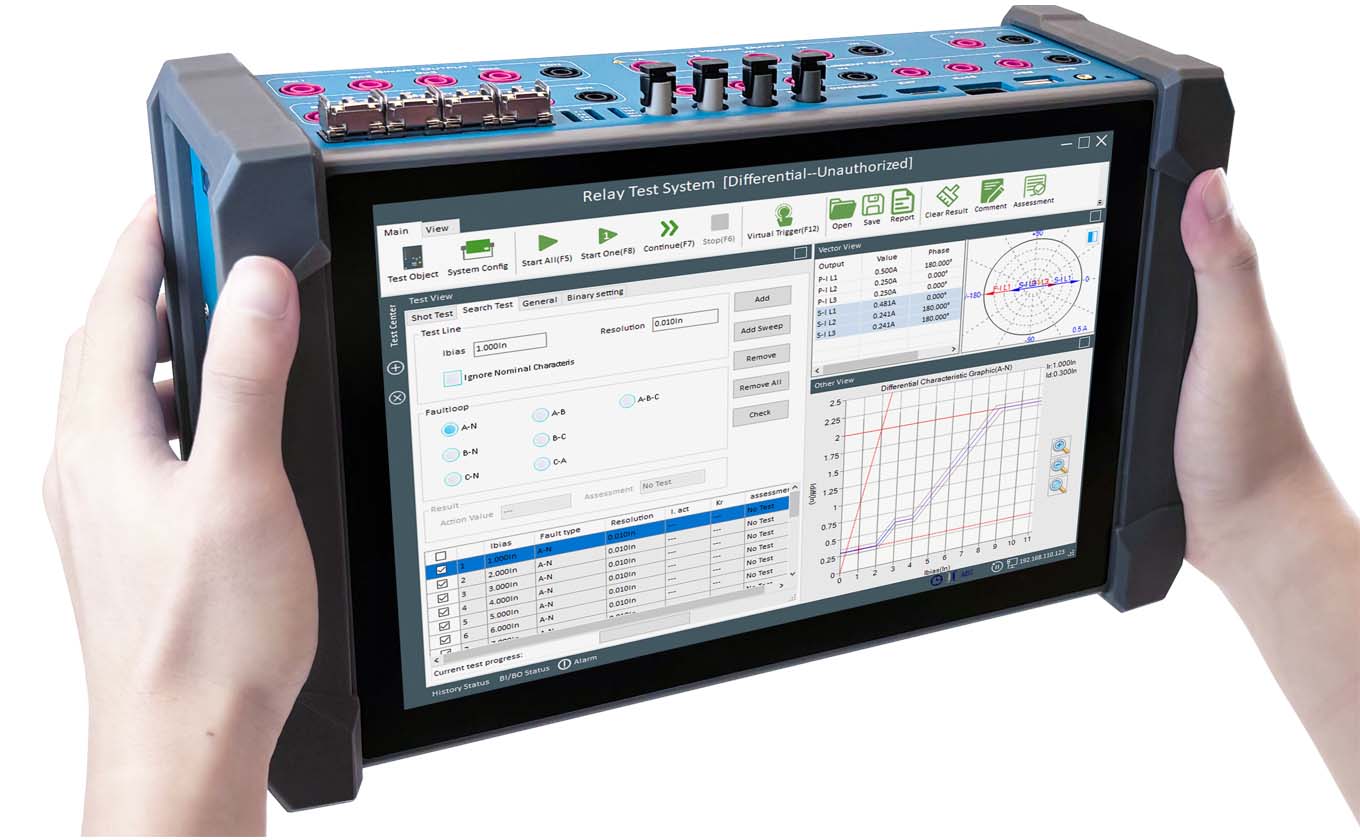

1. The world’s smallest relay tester with 10.1-inch LED touch screen, easy to carry in a iPad size, 3.8kg, high current up to 60A, can continuously output with 3x10A conditions.

2. Extremely simple design for its internal structure, ensure high quality and reliability.

3. Innovative “Plug and Play” technology enable after-sales service very easy and efficient within 20 working days.

4. Class 0.05 High precision output, can be used as a standard source.

5. Main Functions:

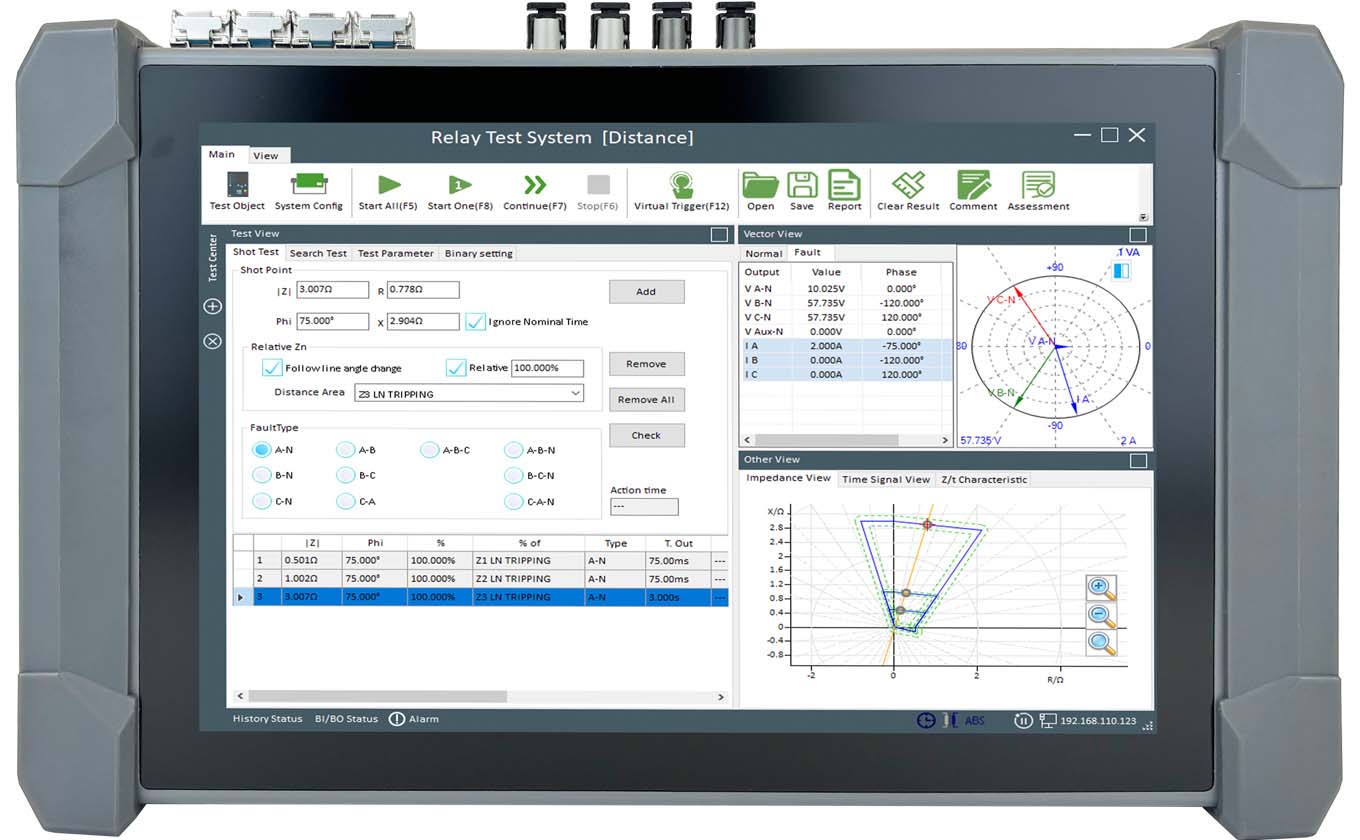

• Fully function KRT software for test management, graphical test modules, template organized, Xrio/Rio import/export, testing result review, auto result assessment and report generate, etc.
• Transient play back up to 3KHz
• 3×100 + 1x1000Mbit Fiber port for IEC61850 SMV and GOOSE simulations
• Inbuilt GPS , IRIG-B and IEEE-1588 synchronized end-to-end testing capability
• 4 binary input, dry contacts or 9-300V potential contacts capability; 2 fast + 2 relay binary outputs.
• Anti-clipping detect, wrong wiring connect alarm and self-protect, overload and overheat protection
• 2×47.52Wh in-built battery, convenient for both air check and travel.
• 3-Year free warranty and life-long maintenance
• Free software upgrade

6. Learn more about the testing software designed for user-friendliness, multifunctional, and cost-effectiveness.

7. Stay ready for any test with our waterproof All-in-one Bag, designed for engineers to carry KFA series mini testers, cable packs, laptops, and tools—engineered for mobility.
